Cost advantages of I.S.T. pigging technology

  • Conventional draining, cleaning and rinsing processes are dispensed with
  • Loss of valuable raw materials and products is now minimal
  • The amount of cost-intensive waste water used is reduced drastically
  • High energy savings
  • No deposits or encrustation in pipes - lengthens the life of pipes

Example:

Comparison of investment costs for a conventional pipework system and an I.S.T. pigging system

Comparison of resulting costs for a conventional pipework system and an I.S.T. pigging system

For planning of a production plant handling more than 50 chemical products, a comparison was made, taking into account economic and sustainable aspects .

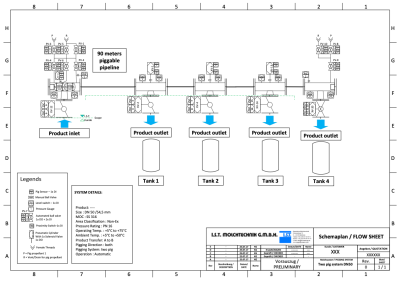

A conventional system with four pipelines and a pigging system with one pipeline as shown in the diagram were used for this comparison. A comparison between the investment costs and the annual operating costs showed that the pigging system is clearly more advantageous than a conventional system design.

The pipeline was made of stainless steel with a nominal diameter of DN 50; a price of € 3 / litre was used as basis for the products. The product loss in the conventional system was calculated with 50% of the pipe contents.

Rinsing water, wastewater costs and energy costs were calculated at € 14 / m³. Product is changed four times a day, each time using 4 m³ of hot water.

The investment costs for the pigging system are based on higher pipe quality, pipe bends and pigging stations regarding surface quality and tighter tolerances, which all together leads to a very good pigging result in the emptying process.

Another big advantage of the pigging system is the reduction in process times.A conventional emptying process does not only include high disposal costs and product losses, but also leads to an ineffective process time. One pigging sequence only takes minutes and immediately leads to a system which is ready for the next use.

Die Investitionskosten für die Molchanlage begründen sich auf die höhere Qualität der Rohre, Rohrbogen und Molchstationen in Bezug auf die Oberflächengüte und engeren Toleranzen, was zu einem sehr guten Molchergebnis im Entleerungsprozess führt.

Ein weiterer, hier nicht aufgeführter Vorteil der Molchanlage ist die Reduzierung der Prozesszeiten. Ein konventioneller Entleerungsprozess ist nicht nur mit Entsorgungskosten und Produktverlusten verbunden, sondern auch mit einem erhöhten Zeitaufwand. Ein Molchvorgang geschieht innerhalb von Minuten und führt unmittelbar zur erneuten Einsatzbereitschaft der Produktionsanlage.
